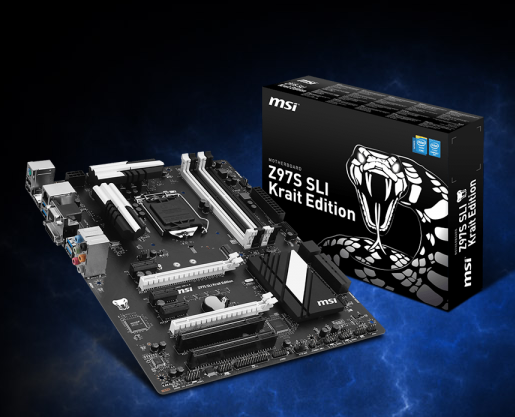

微星Z97S SLI KRAIT EDITION主板支持 Socket 1150 架構的第四代及第五代 Intel® Core™ / Pentium® / Celeron® 處理器，采用Command Center，可全面掌控計算機設定。以下文檔是微星Z97S SLI KRAIT EDITION使用說明書，為英文版，有需要的朋友可立即下載此文檔。
溫馨提示：
本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。
微星Z97S SLI KRAIT EDITION主板說明書目錄
Chapter 1 Getting Started............................................................................1-1
Packing Contents .................................................................................................1-2
Assembly Precautions ..........................................................................................1-3
Motherboard Specifications ..................................................................................1-4
Connectors Quick Guide ......................................................................................1-7
Back Panel Quick Guide ......................................................................................1-9
CPU (Central Processing Unit) ..........................................................................1-11
Introduction to the LGA 1150 CPU ..............................................................1-11
CPU & Heatsink Installation .........................................................................1-12
Memory ..............................................................................................................1-15
Dual-Channel mode Population Rule ..........................................................1-15
Mounting Screw Holes .......................................................................................1-16
Power Supply .....................................................................................................1-17
JPWR1~2: ATX Power Connectors .............................................................1-17
Expansion Slots .................................................................................................1-18
PCI_E1~5: PCIe Expansion Slots ................................................................1-18
PCI1~2: PCI Expansion Slots ......................................................................1-18
Video/ Graphics Cards ......................................................................................1-19
Single Video Card Installation ......................................................................1-19
Internal Connectors ............................................................................................1-20
SATA1~6: SATA Connectors ......................................................................1-20
M2_1: M.2 Connector ..................................................................................1-21
SATA_EXP1: SATA Express Connector ....................................................1-21
CPUFAN1~2,SYSFAN1~3: Fan Power Connectors ....................................1-22
JFP1, JFP2: System Panel Connectors ......................................................1-23
JUSB1~2: USB 2.0 Expansion Connectors .................................................1-24
JUSB3: USB 3.0 Expansion Connector .......................................................1-24
JCI1: Chassis Intrusion Connector ..............................................................1-25
JAUD1: Front Panel Audio Connector .........................................................1-25
JLPT1: Parallel Port Connector ...................................................................1-26
JCOM1: Serial Port Connector ....................................................................1-26
JTPM1: TPM Module Connector .................................................................1-27
JBAT1: Clear CMOS Jumper .......................................................................1-27
Drivers and Utilities ............................................................................................1-28
Driver/ Utilities Installation ...........................................................................1-28
Chapter 2 Quick Installation ........................................................................2-1
CPU Installation ...................................................................................................2-2
Memory Installation ..............................................................................................2-4
Motherboard Installation .......................................................................................2-5
Power Connectors Installation .............................................................................2-7
SATA HDD Installation .........................................................................................2-9
M.2 module Installation ......................................................................................2-10
Front Panel Connector Installation .....................................................................2-11
JFP1 Connector Installation .........................................................................2-11
Front Panel Audio Connector Installation ....................................................2-11
Peripheral Connector Installation .......................................................................2-12
USB2.0 Connector Installation .....................................................................2-12
USB3.0 Connector Installation .....................................................................2-12
Graphics Card Installation ..................................................................................2-13
Chapter 3 BIOS Setup .................................................................................3-1
Entering Setup .....................................................................................................3-2
Entering BIOS Setup .....................................................................................3-2
Overview ..............................................................................................................3-3
Operation .............................................................................................................3-6
Updating BIOS .....................................................................................................3-7
Updating the BIOS with M-FLASH .................................................................3-7
SETTINGS ...........................................................................................................3-8
System Status ................................................................................................3-8
Advanced .......................................................................................................3-8
Boot .............................................................................................................3-16
Security ........................................................................................................3-16
Save & Exit ..................................................................................................3-17
OC ......................................................................................................................3-18
M-FLASH ...........................................................................................................3-26
OC PROFILE .....................................................................................................3-27
HARDWARE MONITOR ....................................................................................3-28
Appendix A Realtek Audio .......................................................................... A-1
Software Configuration .........................................................................................A-2
Software panel overview ................................................................................A-2
Auto popup dialog ..........................................................................................A-3
Hardware Default Setting .....................................................................................A-4
Appendix B Intel RAID ................................................................................ B-1
Introduction ..........................................................................................................B-2
Using Intel Rapid Storage Technology Option ROM............................................B-3
Degraded RAID Array ........................................................................................B-10
System Acceleration (optional) ..........................................................................B-12
RST Synchronization (optional) .........................................................................B-14

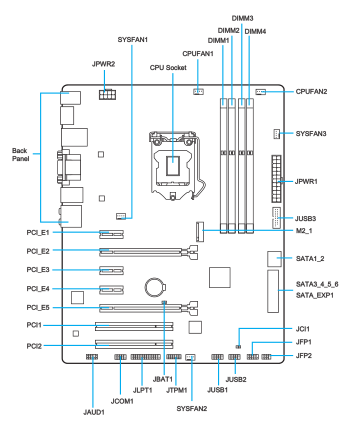

微星Z97S SLI KRAIT EDITION主板說明書——主板結構圖
微星Z97S SLI KRAIT EDITION規格參數
SATA Express 1
CPU 插槽 1150
CPU (最高支持) i7
M.2 port 1
系統總線 100MHz
芯片組 Intel® Z97 Express
DDR3 內存 DDR3 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*/3100*/3200*(*OC) MHz
內存通道 Dual
內存插槽 4
最大內存 (GB) 32
PCI-Ex16 2
PCI-E Gen Gen3 (16,0) (8,8)
PCI-Ex1 3
PCI 2
SATAIII 6
USB 3.0 接口 (前端) 2
USB 2.0 接口 (前端) 4
RAID 0/1/5/10
網絡接口 10/100/1000*1
TPM 1
USB 3.0 接口 (背板) 4
USB 2.0 接口 (背板) 2
音源接口 (背板) 6
VGA 1
HDMI 1
DVI 1
共享最大顯存 (MB) 1760
DirectX DX11
尺寸 ATX
SLI Y
CrossFire Y
