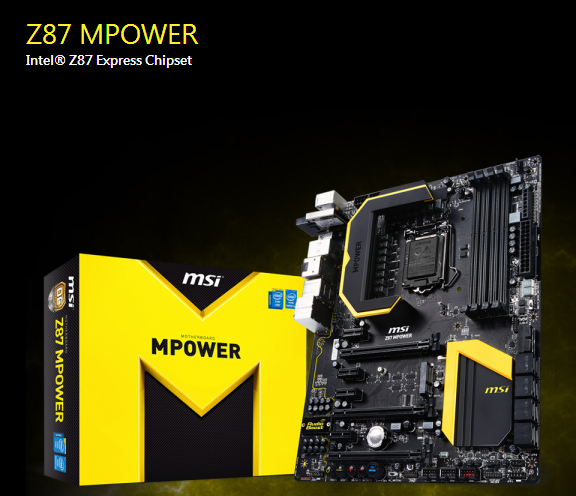

微星Z87 MPOWER主板支持Socket 1150架構的第四代 Intel® Core™ / Pentium® / Celeron® 處理器，支持Wi-Fi 802.11n，Bluetooth 4.0與Intel® Wireless Display無線顯示技術。以下文檔是微星Z87 MPOWER用戶手冊，為英文版本，有需要的朋友可立即下載此文檔。
溫馨提示：

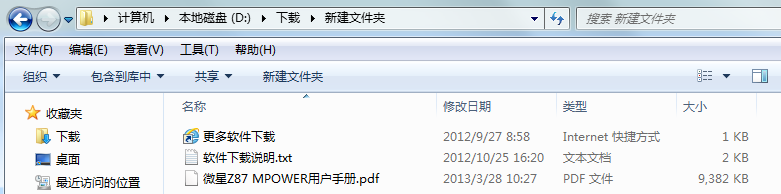

本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。
微星Z87 MPOWER用戶手冊目錄
Preface ............................................................................................................i
Copyright Notice .......................................................................................................ii
Trademarks ..............................................................................................................ii
Revision History .......................................................................................................ii
Smartphone Application ..........................................................................................iii
Technical Support ...................................................................................................iii
Safety Instructions ...................................................................................................iv
FCC-B Radio Frequency Interference Statement ................................................... v
CE Conformity ......................................................................................................... v
Radiation Exposure Statement ...............................................................................vi
European Community Compliance Statement ........................................................vi
FCC Bluetooth Wireless Compliance ......................................................................vi
Bluetooth Industry Canada Statement ....................................................................vi
Taiwan Wireless Statements ...................................................................................vi
Japan VCCI Class B Statement ..............................................................................vi
Korea Warning Statements .....................................................................................vi
Battery Information .................................................................................................vii
Chemical Substances Information .........................................................................vii
WEEE (Waste Electrical and Electronic Equipment) Statement ...........................viii
Chapter 1 Getting Started............................................................................1-1
Packing Contents .................................................................................................1-2
Optional Accessories ...........................................................................................1-2
Assembly Precautions ..........................................................................................1-3
Motherboard Specifications ..................................................................................1-4
Connectors Quick Guide ......................................................................................1-7
Back Panel Quick Guide ......................................................................................1-9
CPU (Central Processing Unit) ..........................................................................1-11
Introduction to the LGA 1150 CPU ..............................................................1-11
CPU & Heatsink Installation .........................................................................1-12
Memory ..............................................................................................................1-15
Dual-Channel mode Population Rule ..........................................................1-15
Mounting Screw Holes .......................................................................................1-16
Power Supply .....................................................................................................1-17
JPWR1~3: ATX Power Connectors .............................................................1-17
Expansion Slots .................................................................................................1-18
PCI_E1~E7: PCIe Expansion Slot ...............................................................1-18
Video/ Graphics Cards ......................................................................................1-19
Single Video Card Installation ......................................................................1-19
AMD CrossFire™ (Multi-GPU) Technology .................................................1-20
NVIDIA ® SLI Technology .............................................................................1-22
Internal Connectors ............................................................................................1-24
SATA1~8: SATA Connector .......................................................................1-24
CPUFAN1~2,SYSFAN1~3: Fan Power Connectors ....................................1-25
JFP1, JFP2: System Panel Connectors ......................................................1-26
JUSB1~3: USB 2.0 Expansion Connector ...................................................1-27
JUSB4: USB 3.0 Expansion Connector .......................................................1-28
JAUD1: Front Panel Audio Connector .........................................................1-29
JTPM1: TPM Module Connector .................................................................1-30
Voltage Checkpoints ..........................................................................................1-31
FV1: V-Check Connectors ...........................................................................1-31
V-Check Spots .............................................................................................1-32
Buttons ...............................................................................................................1-33
OC1: OC Genie Button ...............................................................................1-33
POWER1: Power Button ..............................................................................1-34
FASTB1: GO2BIOS Button ..........................................................................1-35
Jumper ...............................................................................................................1-36
JBAT1: Clear CMOS Jumper .......................................................................1-36
Switches .............................................................................................................1-37
MULTI BIOS SWITCH: Multi-BIOS Switch ..................................................1-37
OC_SWITCH1: OC Genie Mode Switch ......................................................1-38
LED Status Indicators ........................................................................................1-39
BIOS LEDs ..................................................................................................1-39
HDD_LED ....................................................................................................1-39
OC Switch LEDs ..........................................................................................1-39
Debug Code LED Table ...............................................................................1-40
Drivers and Utilities ............................................................................................1-41
Total Installer ...............................................................................................1-41
Chapter 2 Quick Installation ........................................................................2-1
CPU Installation ...................................................................................................2-2
Memory Installation ..............................................................................................2-4
Motherboard Installation .......................................................................................2-5
Power Connectors Installation .............................................................................2-7
SATA HDD Installation .........................................................................................2-9
mSATA SSD Installation ....................................................................................2-10
Front Panel Connector Installation .....................................................................2-11
JFP1 Connecotr Installation .........................................................................2-11
Front Panel Audio Connector Installation ....................................................2-11
Peripheral Connector Installation .......................................................................2-12
USB2.0 Connector Installation .....................................................................2-12
USB3.0 Connector Installation .....................................................................2-12
Graphics Card Installation ..................................................................................2-13
Chapter 3 BIOS Setup .................................................................................3-1
Entering Setup .....................................................................................................3-2
Entering BIOS Setup .....................................................................................3-2
Overview ..............................................................................................................3-3
Operation .............................................................................................................3-5
SETTINGS ...........................................................................................................3-6
System Status ................................................................................................3-6
Advanced .......................................................................................................3-7
Boot .............................................................................................................3-14
Security ........................................................................................................3-14
Save & Exit ..................................................................................................3-15
OC ......................................................................................................................3-16
M-FLASH ...........................................................................................................3-26
OC PROFILE .....................................................................................................3-27
HARDWARE MONITOR ....................................................................................3-28
Appendix A Realtek Audio .......................................................................... A-1
Software Configuration .........................................................................................A-2
Software panel overview ................................................................................A-2
Auto popup dialog ..........................................................................................A-3
Hardware Default Setting .....................................................................................A-4
Appendix B Intel RAID ................................................................................ B-1
Introduction ..........................................................................................................B-2
Using Intel Rapid Storage Technology Option ROM............................................B-3
Degraded RAID Array ........................................................................................B-10
System Acceleration (optional) ..........................................................................B-12
RST Synchronization (optional) .........................................................................B-14

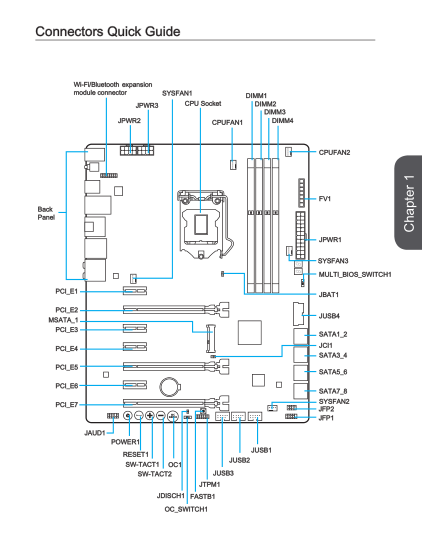

微星Z87 MPOWER用戶手冊——主板結構圖
微星Z87 MPOWER規格參數
Features 1
CPU 插槽 1150
CPU (最高支持) i7
系統總線 100MHz
芯片組 Intel® Z87 Express Chipset
DDR3 內存 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*(*OC)
內存通道 Dual
mSATA 1
內存插槽 4
最大內存 (GB) 32
PCI-Ex16 3
PCI-E Gen Gen3 (16,0,0), (8,8,0), (8,4,4)
PCI-Ex1 4
SATAIII 8
RAID 0/1/5/10
網絡接口 10/100/1000*1
TPM 1
USB 3.0 接口 (背板) 6
USB 2.0 接口 (背板) 2
音源接口 (背板) 6 + Optical SPDIF
HDMI 2
共享最大顯存 (MB) 1024
DirectX DX11
尺寸 ATX
SLI Y
CrossFire Y
