技嘉GA-F2A58-DS3主板采用Socket FM2+支持AMD FM2+/FM2 A系列處理器，搭載Dual-link DVI端口以支持最大至2560x1600超高分辨率，內建超高抗靜電防護網絡和USB端口。以下文檔是技嘉GA-F2A58-DS3使用手冊，有需要的朋友可立即下載此文檔。
溫馨提示：
本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。
技嘉GA-F2A58-DS3使用手冊目錄
GA-F2A58-DS3主板配置圖 .........................................................................................4
GA-F2A58-DS3主板功能框圖 .....................................................................................5
第一章 硬件安裝 .......................................................................................................6
1-1 安裝前的注意事項 .........................................................................................6
1-2 網卡驅動程序下載 .........................................................................................7
1-3 產品規格 ..........................................................................................................8
1-4 安裝處理器 ....................................................................................................10
1-5 安裝內存條 ....................................................................................................10
1-6 安裝擴展卡 ....................................................................................................10
1-7 構建AMD Dual Graphics 系統 ........................................................................ 11
1-8 后方設備插座介紹 ....................................................................................... 11
1-9 插座及跳線介紹 ...........................................................................................13
第二章 BIOS 程序設置 ............................................................................................18
2-1 開機畫面 ........................................................................................................18
2-2 M.I.T. (頻率/電壓控制) ..................................................................................19
2-3 System Information (系統信息) ......................................................................22
2-4 BIOS Features (BIOS功能設定) .....................................................................23
2-5 Peripherals (集成外設) ...................................................................................26
2-6 Power Management (省電功能設定) ............................................................28
2-7 Save & Exit (儲存設定值并結束設定程序) ...............................................29
第三章 附錄 ..............................................................................................................30
3-1 構建SATA硬盤................................................................................................30
3-2 驅動程序安裝 ................................................................................................33
管理聲明 ..................................................................................................................34
技嘉主板售后服務及質量保證卡 .......................................................................39
技嘉科技全球服務網.............................................................................................40

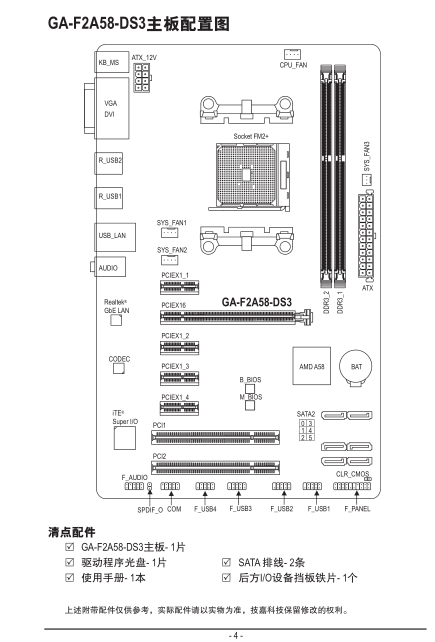

技嘉GA-F2A58-DS3使用手冊——主板配置圖
技嘉GA-F2A58-DS3規格參數
APU
FM2+ Socket:
AMD A series processors
AMD Athlon™ series processors
芯片組
AMD A58
內存
2 x DDR3 DIMM sockets supporting up to 64 GB of system memory
* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules
顯示功能
Integrated Graphics Processor:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x DVI-D port, supporting a maximum resolution of 2560x1600
* Support for 2560x1600 resolution requires both a monitor and cable that support Dual Link DVI.
* The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 2 GB
音效
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
網絡
Realtek® GbE LAN chip (10/100/1000 Mbit)
