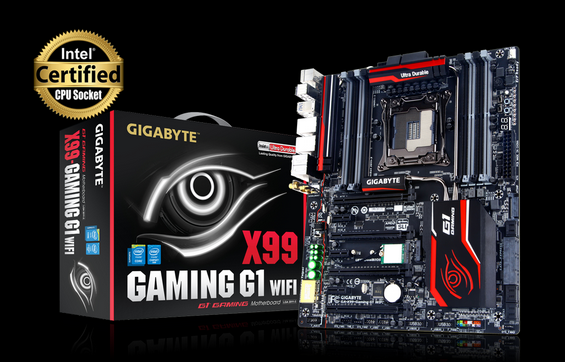

技嘉GA-X99-Gaming G1 WIFI支持全新一代Intel® Haswell-E處理器，殺手E2200專業游戲網卡，獨立左右聲道PCB分層設計。以下文檔是技嘉GA-X99-Gaming G1 WIFI使用手冊，有需要的朋友可立即下載此文檔。
溫馨提示：
本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。
技嘉GA-X99-Gaming G1 WIFI使用手冊目錄
清點配件 .......................................................................................................................6
選購配件 .......................................................................................................................6
GA-X99-Gaming G1 WIFI主板配置圖 ..........................................................................7
GA-X99-Gaming G1 WIFI主板功能框圖 .....................................................................8
第一章 硬件安裝 .......................................................................................................9
1-1 安裝前的注意事項 .........................................................................................9
1-2 網卡驅動程序下載 .......................................................................................10
1-3 產品規格 .........................................................................................................11
1-4 安裝中央處理器及散熱風扇 .....................................................................14
1-4-1 安裝中央處理器(CPU) .......................................................................................14
1-4-2 安裝散熱風扇 .....................................................................................................16
1-5 安裝內存條 ....................................................................................................17
1-5-1 四通道內存技術 .................................................................................................17
1-5-2 安裝內存條 ..........................................................................................................18
1-6 安裝擴展卡 ....................................................................................................19
1-7 構建AMD CrossFire ™ /NVIDIA ® SLI ™ 系統 .......................................................20
1-8 后方設備插座介紹 .......................................................................................22
1-9 安裝后方I/O設備鐵片 ..................................................................................24
1-10 內建按鈕及切換器 .......................................................................................25
1-11 更換音頻放大器 ...........................................................................................27
1-12 插座及跳線介紹 ...........................................................................................28
第二章 BIOS 程序設置 ............................................................................................39
2-1 開機畫面 ........................................................................................................40
2-2 BIOS設定程序主畫面 ...................................................................................41
2-3 M.I.T. (頻率/電壓控制) ..................................................................................44
2-4 System Information (系統信息) ......................................................................56
2-5 BIOS Features (BIOS功能設定) .....................................................................57
2-6 Peripherals (集成外設) ...................................................................................60
2-7 Chipset (芯片組設定) ....................................................................................62
2-8 Power Management (省電功能設定) ............................................................65
2-9 Save & Exit (儲存設定值并結束設定程序) ...............................................67
第三章 構建SATA硬盤 ............................................................................................69
3-1 設定SATA控制器模式 ..................................................................................69
3-2 安裝SATA RAID/AHCI驅動程序及操作系統 ..............................................81
第四章 驅動程序安裝 ............................................................................................85
4-1 Chipset Drivers (芯片組驅動程序) ...............................................................85
4-2 Application Software (軟件應用程序) ...........................................................86
4-3 Information (信息清單) ...................................................................................86
第五章 獨特功能介紹 ............................................................................................87
5-1 BIOS更新方法介紹 .......................................................................................87
5-1-1 如何使用Q-Flash (BIOS 快速刷新)更新BIOS .................................................87
5-1-2 如何使用@BIOS更新BIOS ................................................................................90
5-1-3 如何執行Q-Flash Plus .........................................................................................91
5-2 APP Center (應用中心) ..................................................................................92
5-2-1 EasyTune................................................................................................................93
5-2-2 System Information Viewer .....................................................................................94
5-2-3 EZ Setup .................................................................................................................95
5-2-4 Fast Boot ................................................................................................................98
5-2-5 Smart TimeLock ......................................................................................................99
5-2-6 Smart Recovery 2 (智能恢復2) ..........................................................................100
5-2-7 USB Blocker .........................................................................................................102
5-2-8 Ambient LED ........................................................................................................103
5-2-9 V-Tuner .................................................................................................................104
5-2-10 Smart Switch ........................................................................................................105
5-2-11 Cloud Station Server ............................................................................................106
5-2-12 Game Controller ...................................................................................................112
第六章 附錄 ............................................................................................................113
6-1 Qualcomm ® Atheros Killer Network Manager ..................................................113
6-2 音頻輸入/輸出設定介紹 ............................................................................114
6-2-1 2 / 5.1 聲道介紹 .................................................................................................114
6-2-2 Creative軟件套件 ...............................................................................................114
6-2-3 S/PDIF輸出設定 ................................................................................................118
6-2-4 錄音設備設定 ...................................................................................................119
6-2-5 錄音機使用介紹 ...............................................................................................121
6-3 疑難排解 ......................................................................................................122
6-3-1 問題集 ................................................................................................................122
6-3-2 故障排除 ............................................................................................................123
6-4 除錯燈號代碼說明 .....................................................................................125
管理聲明 ................................................................................................................129
技嘉主板售后服務及質量保證卡 .....................................................................134
技嘉科技全球服務網...........................................................................................135

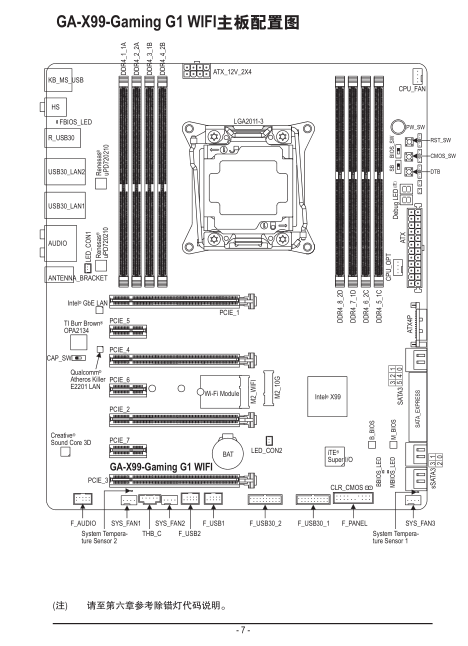

技嘉GA-X99-Gaming G1 WIFI主板配置圖
技嘉GA-X99-Gaming G1 WIFI規格參數
中央處理器(CPU)
支持LGA2011-3插槽處理器：Intel® Core™ i7處理器
L3高速緩存取決于CPU
芯片組
Intel® X99 高速芯片組
內存
8個DDR4 DIMM插槽，最高支持到64 GB
* 由于Windows 32-bit操作系統的限制，若安裝超過4 GB容量?jī)?nèi)存時，實際上顯示之內存容量將少于實際安裝的內存容量。
支持4信道內存技術
支持DDR4 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz
支持non-ECC內存
支持Extreme Memory Profile (XMP)內存
支持RDIMM 1Rx8內存 (non-ECC模式運作)
音效
內建Creative® Sound Core 3D芯片
支持Sound Blaster Recon3Di
內建TI Burr Brown® OPA2134音效放大器芯片
支持High Definition Audio
支持2/5.1聲道
支持S/PDIF輸出
網絡
內建Qualcomm® Atheros Killer E2201網絡芯片(10/100/1000 Mbit)(LAN1)
內建Intel® GbE 網絡芯片(10/100/1000 Mbit) (LAN2)
